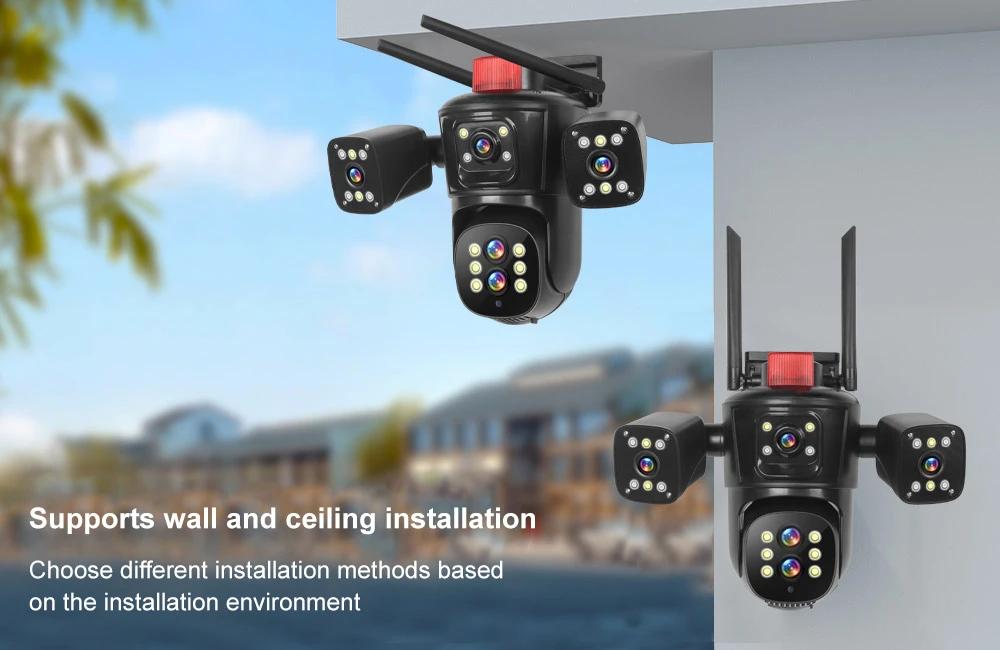

16MP 20MP 5-Lens 4-Screen Wifi Camera – 720° Panoramic, IP66 & 150M Dual Light with AI Siren Alarm & DIY Home Security
Network support: Wired -WIFI- Max pixel: 16 million video image quality Effective monitoring: 10X zoom, 100 meters during the day, night vision 50 meters Built-in lens: 3 4mm HD lenses. Ball machine 6 mm and 16 mm HD lens PTZ support: maximum 355° PTZ, 720° super wide Angle Built-in light beads: 14 red light beads, 16 white light beads Function configuration: pre-set, motion detection, human body detection, automatic tracking, linkage tracking, voice intercom, sound and light alarm, double light night vision, intelligent night vision, remote monitoring Waterproof class: IP66 waterproof and dustproof Storage configuration: 4 screens, 4 videos, 4 storage Power configuration: DC12V-2A Operating temperature: -10℃~+50℃
${{shopModel.rebate>0?shopModel.discountPriceStr:shopModel.formattedAmount}}
$ {{shopModel.formattedAmount}}
Like
{{item.name}}
Quantity：
Estimated Delivery Date: Dec 14 - Dec 14
Frequently Asked Questions
How can I contact customer service?
Do you ship overseas?
How long will it take to get my order?
Specifications
{{item.name}}
{{item.value}}
| Model | Model | SW-10X-7-W/B |
| Name | 16-megapixel outdoor smart gun ball all-in-one camera | |
| Video camera | Appearance and material | 3.5-inch spherical, high-strength plastic shell |
| Processor | T31 | |
| Type of sensor | 1/3 CMOS | |
| Minimum illuminance | 5Lux @(F2.0AGC ON), 2.3 Lux with IR; | |
| Shutter | Shutter adaptive | |
| Camera lens | five lenses | |
| The angle of the head | Horizontal 0°-355°, vertical 0°-90° | |
| Lens interface type | M12 | |
| Day and night change mode | Automatic, ICR infrared filter type | |
| Infrared irradiation distance | 30 meters (varied by environment) | |
| Digital noise reduction | 2D/3D digital noise reduction | |
| Wide dynamic range | Digital wide dynamics | |
| Audio and video | Video compression standard | Smart H.264 ultra-low code stream |
| Video compression code rate | Code rate adaptive | |
| Audio compression standard | G.711a/k8 | |
| Audio compression code rate | Code rate adaptive | |
| Audio working mode | Single-work two-way | |
| Audio and video cloud storage | Three-way 1080p synchronous storage, synchronous look back | |
| Audio and video local storage | Micro SD, three-way 1080p synchronous storage, synchronous look back | |
| Real-time preview | Three pictures, three-way 1080p synchronous preview, | |
| Image | Image size | HD:2560x1440, SD:640x360 |
| Frame rate | 15 frames (day)/12 frames (night) | |
| Image settings | Mirroring/flip | |
| Backlight compensation | Hold out | |
| Network function | Intelligent alarm | Input: Humanoid Detection/Mobile Tracking/Mobile Alarm Output: Linkage Light |
| One-click configuration | Intelligent configuration, hot spot AP configuration, manual addition | |
| Interface protocol | Cloud Private Protocol | |
| General functions | Three-code stream, mirroring, password protection | |
| Port | Storage interface | Micro SD card (maximum 128G) or cloud storage- SD card not included.) |
| Power interface | Φ5.5 Round head power interface | |
| Resump interface | Support tailline key reset (requires tailline to be supported) | |
| Wired network port | Support RJ45 network port (10/100M adaptive) | |
| Wireless parameters | Wireless standard | 802.11b/g/n |
| Frequency | 2.4 GHz | |
| Channel bandwidth (channel) | Support 20MHz | |
| Safe | 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK | |
| Transmission rate | 11b: 11Mbps, 11g: 54Mbps, 11n: 150Mbps | |
| Cloud services | Cloud services | Puwei Video Cloud PDES Cloud Encryption |
| APP | IPC360 Home (App Store IPC360 Home Download) | |
| Cloud storage | Puwei Video Cloud | |
| General norms | Operating temperature and humidity | -10°C~50°C, 10%~90 (no condensation) |
| Power supply | DC12V-2A±10% | |
| Power consumption | <5W without night vision | |
| Weight | 1.5kg |
